Perfect Fit Every Time: Automatically Resize Text

Often, we have a fixed space for the text, and it becomes tedious to adjust its size based on the content and available space. Chitra provides a command to get the text size before drawing. This will be very useful to arrange the text vertically or horizontally.

auto size = ctx.textSize("Hello World!");
auto x = (ctx.width - size.width) / 2.0;
auto y = (ctx.height - size.height) / 2.0;
ctx.text("Hello World!", x, y); // Render text center aligned (Vertical and Horizontal)

In this tutorial, we will start with the maximum text size and iteratively check whether it fits; if not, reduce the text size and check again. Once it reaches the minimum size, then stop it and cut the text to fit the bounding box.

In the above example, single-line text was used, so the text width was compared. When a text box is used (with width and height), compare the box height with the container height.

Source:

#!/usr/bin/env dub
/+ dub.sdl:
 dependency "chitra" version="~>0.4.0"
 +/
import chitra;

void autoText(Chitra ctx, string txt, double x, double y, double w)
{
    auto rendered = false;
    double minSize=5.0;
    double maxSize=30.0;

    foreach_reverse(i; minSize .. maxSize + 1)
    {
        ctx.textFont("American Typewriter", i);
        auto box = ctx.textSize(txt);

        if (box.width < w)
        {
            rendered = true;
            ctx.text(txt, x, y, box.width, box.height);
            break;
        }
    }

    if (!rendered)
    {
        ctx.textFont("American Typewriter", minSize);
        ctx.text(txt, x, y);
    }
}

void main()
{
    auto ctx = new Chitra(350, 600);
    with (ctx)
    {
        noStroke;
        background("#ffd700");
        textFont("American Typewriter");

        saveAs("auto-text.png", resolution: 72);

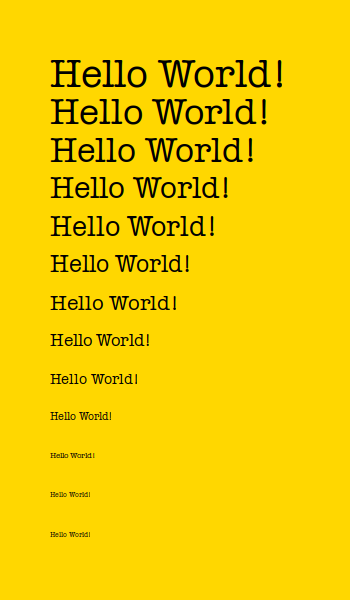

        // Reduce the width by 20 points and check if it fits
        foreach(i; 0 .. 13)
            ctx.autoText("Hello World!", 50, 50 + 40 * i, 250 - i * 20);

        saveAs("auto-fit-text.png", resolution: 72);
    }
}
