Generating 5mm dot pages using Chitra

Chitra is a 2D graphics library that lets you write simple D code to generate 2D graphics. In this blog post, we will learn to generate dot page with 5mm gap and save it as PDF.

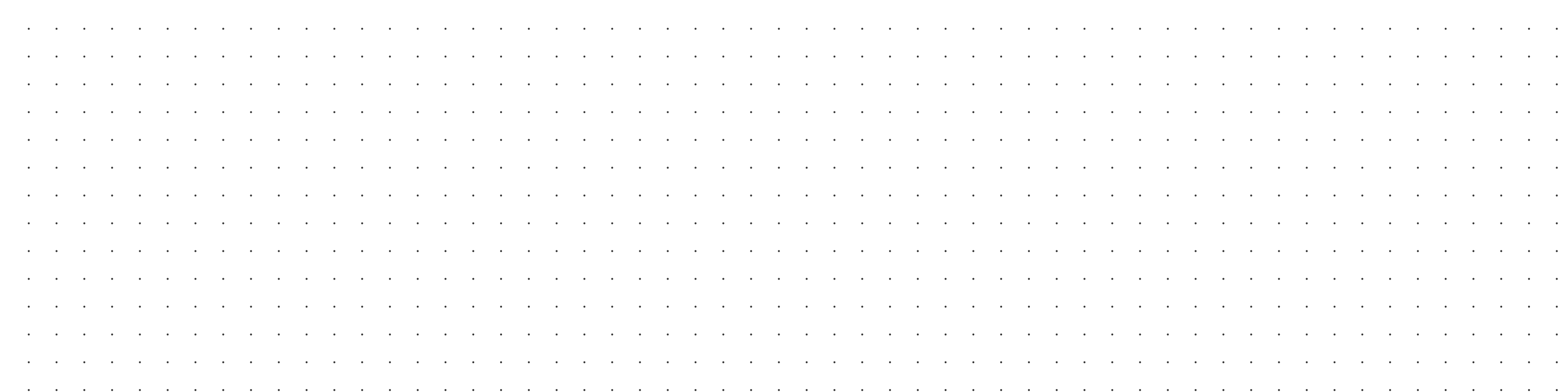

5mm Dot page

Create a D file and add the following lines.

/+ dub.sdl:
 dependency "chitra" version="~>0.3.0"
+/

(Alternatively, create a directory and initiate the D project by running dub init and add chitra as dependency.)

Import the library and set the page size as required.

import chitra;

void main()
{
    auto ctx = new Chitra("a4");
}

Standard page sizes are supported (a0-a10, b0-b10, c0-c10 etc). It is easy to add custom sizes if the required paper size is not available. For example,

// Square context with 1024px width and height
auto ctx = new Chitra(1024);

// Width and height in mm
//                    WIDTH   HEIGHT
auto ctx = new Chitra(200.mm, 100.mm);

Select a color and draw the points with 5mm gap. Finally save the generated drawing as pdf.

#!/usr/bin/env dub
/+ dub.sdl:
 dependency "chitra" version="~>0.3.0"
+/

import chitra;

void main()
{
    auto ctx = new Chitra("a4");

    with (ctx)
    {
        noStroke;

        // Initial gap
        auto x = 5.mm;
        auto y = 5.mm;

        // Dots color
        fill("#666666");

        while (y < height)
        {
            // Draw a point
            point(x, y);

            x += 5.mm;
            if (x >= width)
            {
                x = 5.mm;
                y += 5.mm;
            }
        }

        saveAs("dot_page_a4.pdf");
    }
}

Now run the following command to generate the dot_page_a4.pdf.

$ dub dot_page.d

To create the executable, run dub build --single dot_page.d.

$ dub build --single dot_page.d
$ ./dot_page
